ESGKLB23(32)-KxxC(I)
- 传输速率：
- 10G
- 波长：
- Tx1270nm/Rx1330nm Tx1330nm/Rx1270nm Tx1490nm/Rx1550nm Tx1550nm/Rx1490nm
- 传输距离：
- 10km,20km,40km,80km
- 认证：
- CE FCC ROHS
- DDM：
- YES
- 电源电压：
- +3.3V
- 工作温度：
- 0~+70℃（商业级），-40~+85℃（工业级）
浏览：7135次
- 咨询电话
- +86-27-8700 1682
产品推荐
- 产品描述
- 订购须知

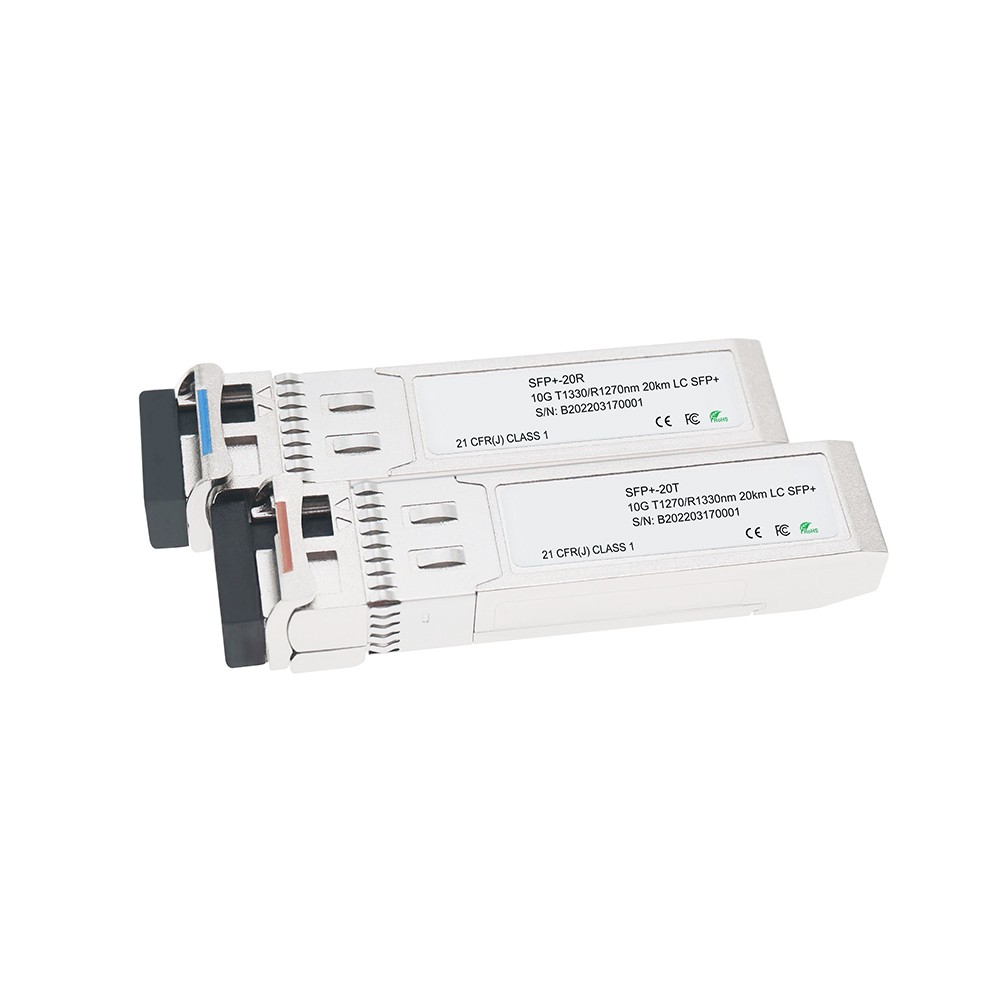

10G BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270) (1490nm) transmitter and 1270(1330) (1550nm) receiver. It includes 1270/1330 DFB lasers, PIN receivers to reach 10KM, 20KM, 40KM, APD receivers for 60KM; 1490/1550 DFB lasers, APD receivers to reach 80KM, commercial temp and industrial temp range from -40⁰C to +85⁰C are all on option.
| ESHKLB23-K10C | SFP+ 10G BIDI TX1270/RX1330nm 10km LC DDM |
| ESHKLB32-K10C | SFP+ 10G BIDI TX1330/RX1270nm 10km LC DDM |
| ESHKLB23-K20C | SFP+ 10G BIDI TX1270/RX1330nm 20km LC DDM |
| ESHKLB32-K20C | SFP+ 10G BIDI TX1330/RX1270nm 20km LC DDM |
| ESHKLB23-K40C | SFP+ 10G BIDI TX1270/RX1330nm 40km LC DDM |
| ESHKLB32-K40C | SFP+ 10G BIDI TX1330/RX1270nm 40km LC DDM |
| ESHKLB23-K60C | SFP+ 10G BIDI TX1270/RX1330nm 60km LC DDM |
| ESHKLB32-K60C | SFP+ 10G BIDI TX1330/RX1270nm 60km LC DDM |
| ESHKLB45-K80C | SFP+ 10G BIDI TX1490/RX1550nm 80km LC DDM |
| ESHKLB54-K80C | SFP+ 10G BIDI TX1550/RX1490nm 80km LC DDM |
